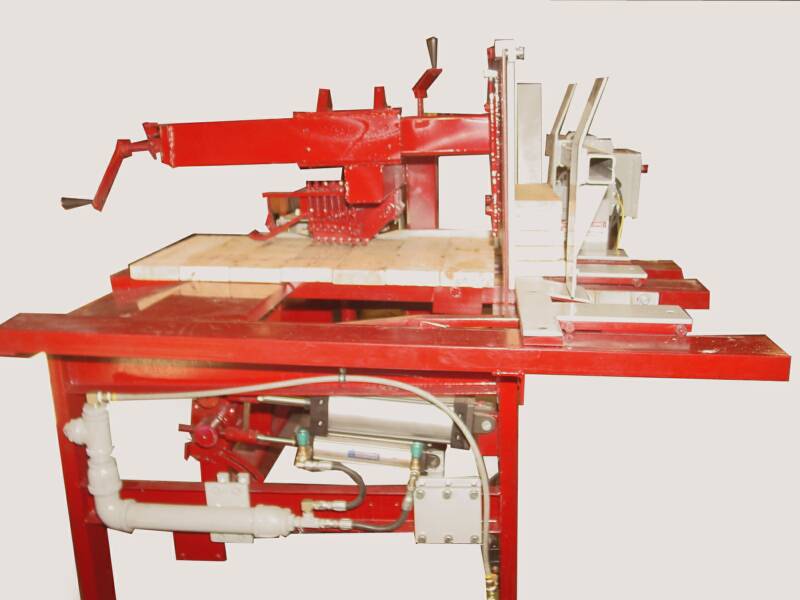

KMC Hopper Fed Chisel Pointer

Model C1272H

keystonemachine.org

Heavy Duty Construction



45 Cycle Per Minute



Feed Rate with 15HP Motor



Variable Speed with Air Over

Hydraulic Feed System



Adjustable Hopper Feeder from 3/4"to 12" Wide Boards



One Control Console



Hopper Height 23"

Capacity



Thickness-3/4" to 2"

Length-12" to 72"

Width-3/4" to 12"



Approx. Wt. 1,650 lbs.



Approx. Floor Space 5'x5'



Optional

Starter #2 magnetic 230 volt and 480 volt with start and stop button

See It In Action
