K.M.C. MODEL 2072P OR 1272P
AUTOMATIC STAKE POINTER

LEADING THE INDUSTRY IN STAKE POINTERS SINCE 1989
*NEW FEATURE*
Removes Broken Point with Push of a Button

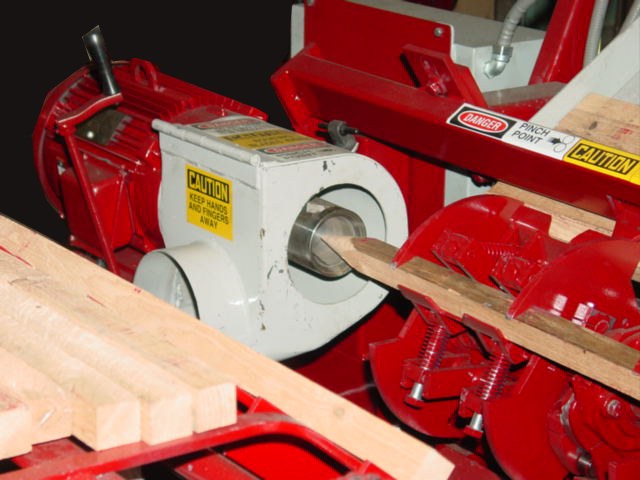

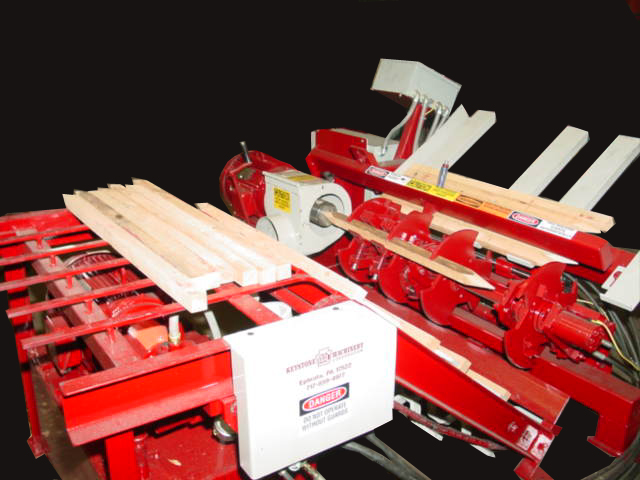

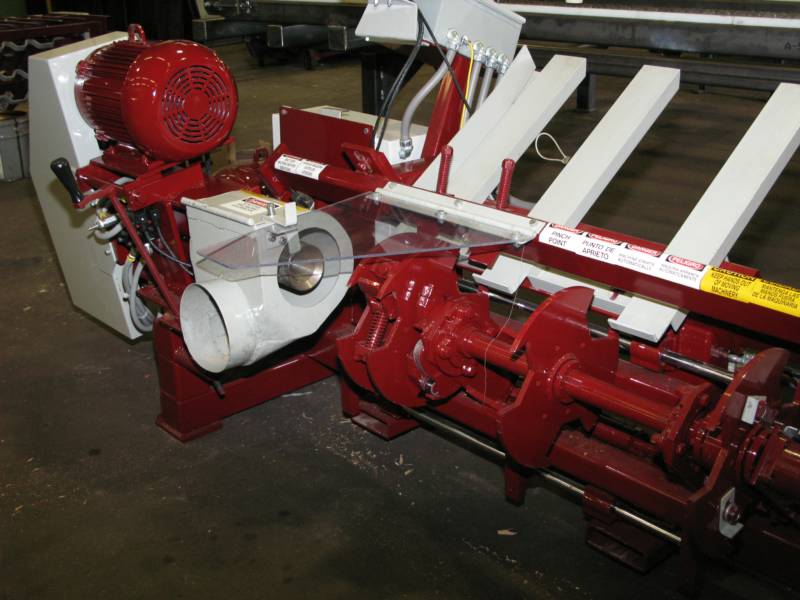

Our Automatic Stake Pointer produces stakes used in surveying.  Put simply, it's a gigantic pencil sharpener.

We currently manufacture two different models of the automatic stake pointer:
20" and 12"
20" Machine:

*Stake Size-3/4" to 2"
Square or Rectangular

*Material Length-20" to 72"

*2800 Stakes per Hour

*10 HP 3600 RPM TEFC Head Motor

*Low Material Level Shut-off Switch

*Prewired Control Panel

* Prewired Motor & Starter

*Automatic & Manual Control

*Heavy Duty Construction
12" Machine:

*Stake Size-3/4" to 2"
Square or Rectangular

*Material Length-12" to 72"

*3100 Stakes per Hour

*10 HP 3600 RPM TEFC Head Motor

*Low Material Level Shut-off Switch

*Prewired Control Panel

* Prewired Motor & Starter

*Automatic & Manual Control

*Heavy Duty Construction
Optional:
(available on both machines)

*Elevator & Sorting Deck Combination

*Hydraulic Power Pack
We also offer a smaller version of the stake pointer that is manually run.  It's built specifically for the individual who doesn't need to mass produce stakes.  To see it, just click on the link below:
